To unfold your Gotrax scooter, first power it off and place it on a stable surface. Locate the silver folding latch near the front wheel and fully disengage it by pulling or lifting the tab. Hold the stem firmly, then lift the tiller upright until it clicks securely into place.
Verify the folding lever is completely open, and check the handlebar is locked. After confirming everything’s tight and connected, you’re ready to go. Keep going to spot useful tips and troubleshooting steps.
Key Takeaways
- Locate the silver tab or latch near the base of the tiller by the front wheel and ensure the scooter is powered off.
- Pull up the silver tab or lever to release the folding latch while holding the stem firmly to prevent re-locking.
- Lift the tiller upright until it clicks securely into place, confirming the folding mechanism is fully disengaged.
- Insert and tighten the safety lock near the red lever if your model includes one for added security.
- Check that all cables are connected, and test throttle and brakes before riding to ensure safe operation.

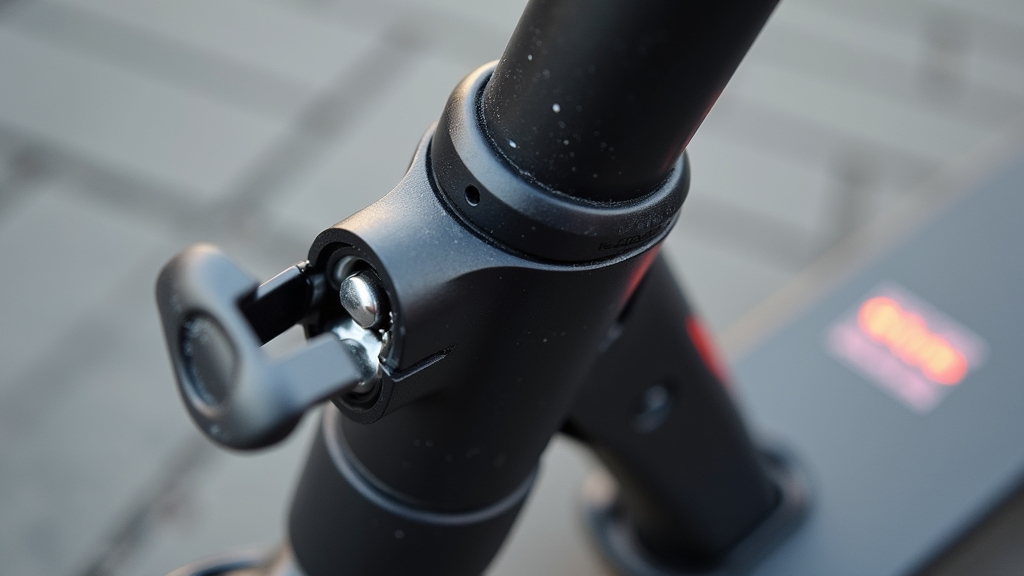

Locate the Folding Mechanism on Your Gotrax Scooter
Before you can fold your Gotrax scooter, you need to locate the folding mechanism. On most models like the G3, G4, Eclipse, and GMAX series, you’ll find it at the base of the tiller near the front wheel. Look for a silver tab integrated into a metal latch assembly.
Some models, such as the Elite or XR Elite Max, also have a safety pin on the left side near the front wheel that must be released along with the tab. This folding mechanism lets the handlebar stem fold down toward the deck for easier storage.
It’s designed for two-handed operation, usually locking securely with a noticeable click when folded. Make sure you identify this part before moving on to safely release the latch.
Always ensure the scooter is completely stationary and powered off before attempting to fold or release the latch. If you encounter resistance, inspect the latch carefully as some mechanisms have master link-style components that require specific handling.
Releasing the Folding Latch Safely
Alright, let’s go through the steps to safely release the folding latch on your Gotrax scooter. First things first, you’ll need to find the folding latch. It’s usually located near the rear fender or the handlebar stem. Got it? Once you’ve located it, go ahead and pull up the silver tab.
Now, carefully lower the latch to release the tiller assembly. Just a quick tip: make sure you have a firm grip on everything. Regular maintenance helps prevent lock mechanism issues and ensures smooth operation.
Oh, and before you fully unfold it, take a moment to check that no cables are caught up in there. Safety first, right? This plastic hook and latch set is designed for specific scooter models like the GOTRAX GXL V2 & XR Ultra to ensure durability and ease of installation.
Locate Folding Mechanism
While locating the folding mechanism on your Gotrax scooter, you’ll find it near the base of the tiller, close to the front wheel on most models. Ensuring the area is clear of obstacles before operating the folding mechanism can prevent accidents.
Start by powering off the scooter and retracting the kickstand for safety. Turning off the scooter before folding helps to conserve battery life. Look for a metallic silver tab or lever designed to be pulled up or lifted.
On models like G3, G4, and G Pro, pull the silver tab up first, then pull the latch down. For Elite or XR Elite Max, check for a safety pin on the left side near the front wheel that must be released simultaneously. Verify no cables obstruct the area and avoid forcing the latch. Confirm the latch disengages with an audible click before proceeding to fold or unfold the scooter.
Proper Latch Release
After locating the folding mechanism near the base of your Gotrax scooter, focus on releasing the latch safely to unfold it.
First, place the scooter on a flat, stable surface. Hold the stem firmly with one hand and gently lift the latch lock upwards with the other. It is important to ensure the scooter is on a flat surface to prevent tipping. Stabilizing the scooter with one foot on the deck enhances safety during this process.
Keep continuous hold on the latch to prevent accidental re-locking. As you lift the latch, begin raising the handlebar or stem. Only release the latch once the stem reaches the unfolded position. Listen for a click and visually confirm the latch fully engages in its notch.
Finally, apply slight pressure to the handlebar to ensure stability. If the latch feels stiff, check for dirt or misalignment and clean or realign as needed before proceeding. Regular inspection and maintenance help keep folding mechanisms functioning smoothly.
Steps to Lift and Unfold the Tiller and Handlebars
Before you can ride your Gotrax scooter, you need to release the folding mechanism by pulling up the silver tab near the tiller’s base.
Start riding your Gotrax scooter by lifting the silver tab at the tiller’s base to unlock the folding mechanism.
Then pull the latch down fully to free the tiller and handlebars from their folded position. Next, press down on the rear fender to disengage the folding hook from the buckle, allowing the tiller to lift smoothly. It is important to perform this step on a flat, stable surface to avoid tipping or injury.
Lift the tiller upright toward a vertical position until it clicks or locks into place, ensuring it’s secure and doesn’t wobble. It is important to listen for a click indicating that the stem is securely locked in place. Insert and tighten the safety lock near the red lever to prevent accidental folding.
If your model supports it, gently fold or adjust the handlebars after the tiller is upright, listening for a click to confirm they’re locked into place and ready for safe riding.
Ensuring the Folding Lever Is Fully Disengaged
Because the folding lever controls the tiller lock, you need to make sure it’s fully disengaged before lifting the tiller. First, locate the silver tab near the base of the tiller, adjacent to the front wheel. Then, pull or lift the lever as required by your model to release the lock.
Listen for a distinct click that confirms full disengagement. Avoid forcing the lever to prevent damage. Check these to verify the folding lever is fully disengaged:
- The lever visibly shifts from locked to open position.
- You feel no resistance when gently lifting the tiller.
- You hear a clear click indicating the lock is released.
Confirming full disengagement lets you safely unfold your Gotrax scooter without issues. Always ensure all bolts are tightened and components properly secured during assembly and unfolding to maintain safe operation. Regular mechanical maintenance helps prevent folding mechanism failures and ensures smooth scooter function.

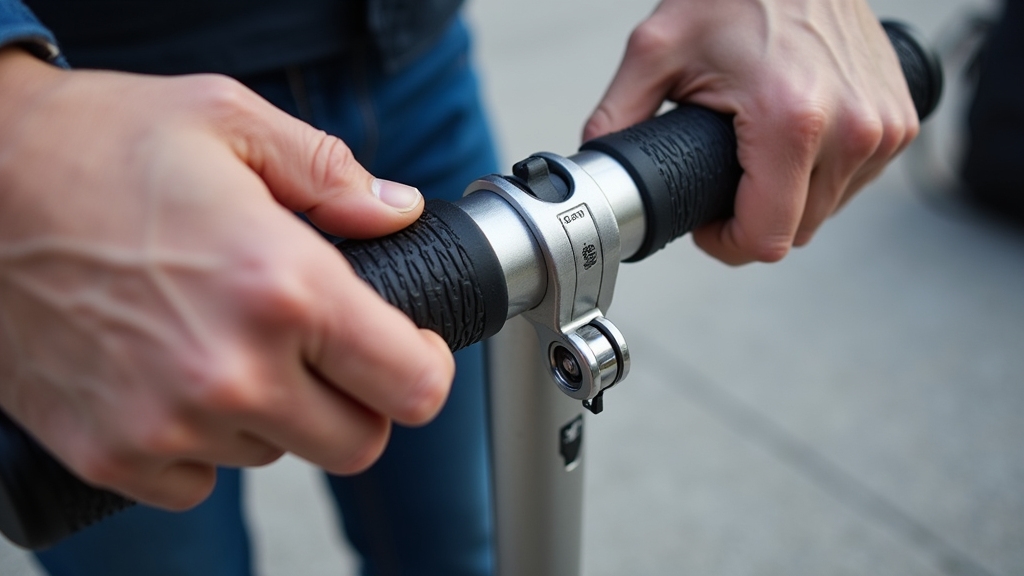

Securing the Tiller in the Open Position
Once you’ve unfolded the tiller, you’ll need to lift it upright and align it with the scooter deck. Scooters feature automatic CVT transmissions that enhance ease of use in urban environments.
Press down on the rear part of the fender latch, then hook the tiller latch onto it. Apply slight pressure until you hear a click confirming the tiller is locked. Check that the tiller doesn’t wobble.
If it does, repeat the steps to lock the scooter in the upright position.
| Step | Action |
|---|---|
| 1 | Lift tiller upright |
| 2 | Align tiller with scooter deck |
| 3 | Press rear fender latch down |
| 4 | Hook tiller latch onto fender latch |
| 5 | Apply pressure until clicking sound |
Checking Cable Connections and Safety After Unfolding
While unfolding your Gotrax scooter, it’s essential that you inspect all cable connections carefully to make certain none are loose or damaged. The go TRX G4 scooter demonstrates how reliable and durable a scooter can be when properly maintained.
Check that the wiring harnesses between the handlebar, stem, and base are properly connected, with no bent pins or exposed wires. Examine cables for pinching or sharp bends caused by folding, and ensure brake and throttle wires remain intact.
Once connected, power on your scooter to test throttle response and brake light function, listening for abnormal sounds or warning indicators. Confirm cables run neatly along designated channels without rubbing moving parts.
Make sure protective sleeves haven’t shifted or torn during unfolding. Tighten any loose fasteners around the folding mechanism and cable clamps. Additionally, using weather-resistant components in the scooter’s wiring enhances durability and safety.
Troubleshooting Common Folding and Unfolding Issues
If your Gotrax scooter’s folding or unfolding feels stiff, stuck, or unresponsive, you’ll want to check for common issues like dirt buildup, misaligned parts, or worn components. First, clean and lubricate the folding joints and latch to remove grime and reduce stiffness.
Next, inspect the folding latch and hook alignment; misalignment can prevent proper locking or releasing. Make certain you fully release the folding mechanism before folding or unfolding to avoid damaging parts.
Avoid forcing the mechanism, as excessive force can bend or weaken components. Also, check for loose folding pins or bolts and tighten them if needed. Finally, guarantee you power off the scooter before folding to prevent safety lock interference.
Regular maintenance prevents most folding problems and keeps your scooter working smoothly. It is also important to ensure the safety lock is securely fastened to prevent folding during use and to maintain stability.
Frequently Asked Questions
Can I Leave the Scooter Folded for Extended Periods?
You can leave your Gotrax scooter folded for extended periods, but it’s best to unfold it regularly to avoid wear and stiffness in the folding mechanism. Keep the battery charged between 30-80%, power it off, and store it in a cool, dry place.
Check and lubricate the folding joints occasionally. Avoid placing heavy weight on the folded scooter and follow manufacturer’s guidelines to maintain its condition and longevity.
How Do I Maintain the Folding Mechanism?
You maintain the folding mechanism by regularly cleaning it with a damp rag to remove dirt and grime, avoiding harsh chemicals. Next, apply lubricant sparingly to pivot points and latches to keep them smooth and quiet.
Inspect for rust or loose screws and tighten as needed. Always check that the latch moves freely and locks securely. Store your scooter in a dry place and avoid forcing the folding parts to guarantee longevity.
Are There Weight Limits for Carrying the Folded Scooter?
Yes, there are weight limits when carrying your folded Gotrax scooter. While the scooter itself weighs around 27-30 lbs, you need to take into account your own strength and the scooter’s maximum rider weight of 220 lbs.
Always make certain it’s fully locked in the folded position before lifting. Avoid carrying extra heavy items on it, and regularly check folding joints for wear to keep it safe and durable during transport.
Can I Fold the Scooter With Accessories Attached?
Folding your scooter with accessories attached is like trying to close a book with bookmarks sticking out. It just won’t sit right. To protect your scooter and gear, detach bulky items like baskets, lights, or mounts first.
Then fold the scooter carefully, ensuring latches and hinges aren’t obstructed. This keeps everything safe, avoids damage, and makes folding smoother. When ready, reattach your accessories for your next ride.
How Do Folding Pedals Affect Scooter Balance and Storage?
Folding pedals improve your scooter’s balance by providing a stable, locked platform for your feet when unfolded, preventing slips. When folded, they reduce the scooter’s width, making it easier to balance at low speeds or when stationary.
For storage, folded pedals shrink the scooter’s footprint, letting you stash it in tight spaces without snagging. This compact design also simplifies transport and protects your scooter from damage during handling.
Simple Steps to Unfold Your Gotrax Scooter
Unfolding your Gotrax scooter is like opening a sturdy gate to adventure. You just need the right steps. First, release the latch gently, then lift the tiller until it clicks securely, like raising a flag.
Always double-check cables and locks, ensuring everything’s ready to roll. When you follow these steps, your scooter unfolds smoothly, ready to carry you forward safely and confidently on every journey.
