To fold your Gotrax scooter, first power it off and locate the silver folding latch near the front wheel. Lift or press this latch to release the handlebar stem, then lower the handlebars toward the deck until the tiller hook clicks securely onto the rear fender latch.
Twist the safety pin clockwise to lock the fold, ensuring stability during transport. Different models may have unique steps, so understanding these details can help you maintain and operate your scooter safely and effectively.
Key Takeaways
- Turn off the scooter and locate the folding mechanism near the front wheel or base of the tiller.
- Lift or press the silver tab or lever to release the folding latch.
- Lower the handlebars toward the deck until the tiller hook clicks onto the rear fender latch.
- Twist the safety lock pin clockwise to secure the folded position and prevent accidental unfolding.
- To unfold, pull the silver tab upward, lift the handlebars upright, and ensure the latch clicks securely.
Identifying the Folding Mechanism on Your Gotrax Scooter
When you need to fold your Gotrax scooter, identifying the exact folding mechanism on your model is crucial for safe and effective operation.
Gotrax scooters feature varied folding assemblies depending on the model—GXL V2, XR Ultra, XR Elite, Flex, Astro, Glider, G2, and G2 Plus. Each has distinct folder assemblies that are designed with durable materials to ensure long-lasting performance and safety.
Typically, these mechanisms include a metal alloy hinge, release lever, wedge, and handlebar clamp, finished in black or teal. For example, GXL V2 and XR Elite use black folder assemblies, while Glider and G2 Plus feature teal components. These parts aren’t interchangeable; each is engineered to fit precisely and withstand specific folding stresses.
Proper identification prevents damage, ensures compatibility, and maintains your scooter’s structural integrity and rider safety during folding. The GXL V2, XR Ultra, and XR Elite models specifically use an original manufacturing folding mechanism assembly to ensure durability and proper function.

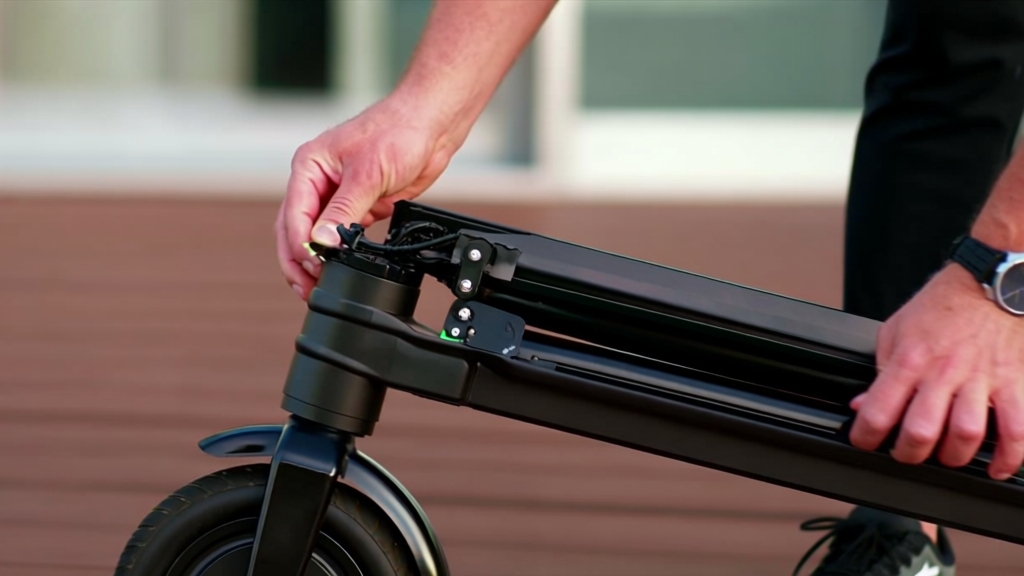

Step-by-Step Guide to Folding Your Scooter
First, locate the folding mechanism near the base of the tiller. Release it by lifting the silver tab or pressing the rear fender, depending on your Gotrax model. Before beginning, make sure the scooter is turned off via the power button to ensure safety.
Next, fold the tiller and handlebars down toward the deck. Continue folding until the tiller hook clicks securely onto the rear fender latch. Finally, secure the folded position by engaging the safety lock pin. This prevents accidental unfolding during transport or storage.
Locate Folding Mechanism
Where exactly is the folding mechanism located on your Gotrax scooter? You’ll find it near the base of the tiller, the vertical handlebar stem by the front wheel. This mechanism usually features a silver tab, latch, or lever designed for quick release and secure locking.
It’s visible and accessible without tools, making folding straightforward. Before folding, make sure to power off the scooter to conserve battery life and enhance safety power off. Models like the G3, G4, Eclipse, and GMAX series commonly have this setup.
- Positioned at the tiller base near the front wheel
- Includes a silver tab or lever controlling the fold
- Designed for tool-free access and operation
- Features safety locks to prevent accidental folding
- Provides audible clicks confirming secure engagement
Always ensure the folding lever resets and locks securely to maintain folding safety before carrying or storing the scooter. Locate this mechanism carefully to prepare for the next folding step.
Release and Fold Tiller
Although the folding mechanism is designed for ease, you must release the silver tab located at the base of the tiller near the front wheel to begin folding.
Pull the tab upward to disengage the folding latch, then pull the latch down fully to disengage the tiller assembly. Some models might require pressing a safety buckle or lever to enable this step. Always ensure the scooter is powered off before folding to avoid accidental throttle engagement during the process power off scooter.
For safe transit, ensure proper secure attachment of all folding parts. Once fully released, fold the handlebars downward toward the deck, ensuring they align parallel to the scooter frame.
You’ll typically hear a click signaling the integrated tiller hook has engaged and secured the handlebars in place. Before moving or storing the scooter, confirm the tiller is stable and the latch is completely disengaged to prevent damage during folding.
Secure Folded Position
Once you’ve released the folding latch and lowered the handlebars toward the deck, secure the folded position by engaging the tiller hook onto the fender latch. Listen closely for a click that signals the hook has locked firmly. The scooter’s folding design allows quick setup and portability, making it easy to carry when folded.
Proper folding enhances portability, storage efficiency, and protects the scooter from environmental damage. Confirm that the handlebars don’t move freely or risk unfolding during transport. Next, insert and twist the safety pin near the red lever clockwise to lock the folding mechanism securely.
Before carrying, gently shake the scooter to verify stability and inspect locking points for wear.
- Engage tiller hook firmly onto fender latch
- Listen for distinct locking click
- Insert and twist safety pin clockwise to secure
- Verify folded handlebars are immobile
- Test stability by gentle shaking before transport
How to Unfold and Secure the Scooter for Riding?
Before you start riding, you’ll need to unfold and securely lock the Gotrax scooter to guarantee safe operation.
Begin by placing the scooter on a flat surface and ensuring it’s powered off. Locate the folding lever near the front wheel. It is important to confirm the scooter is stationary before attempting to unfold it. Proper adjustment of components ensures smooth operation and safety.
Start on a flat surface with the scooter powered off, then find the folding lever by the front wheel.
Pull up the silver tab, then pull the latch down to release the tiller. For models like G3 or GMAX, press down the rear fender latch to unhook the tiller. Lift the handlebar upright with one hand while holding it steady with the other.
Engage the locking mechanism until you hear a click, confirming it’s secure. Double-check for any wobble, tighten screws if necessary, and verify the scooter’s stability. Finally, inspect controls and brakes before riding to ensure smooth gear shifts and reliable stopping power.

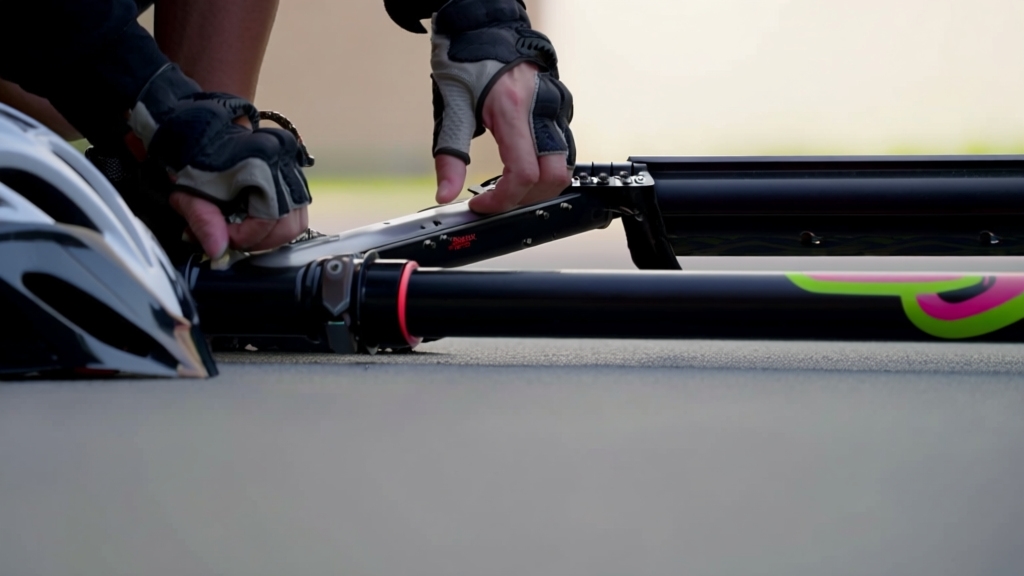

Safety Tips for Folding and Riding Gotrax Scooters
After you’ve unfolded and secured your Gotrax scooter, prioritizing safety during both folding and riding is key to preventing injuries and equipment damage. Always wear a helmet and closed-toe shoes to protect your head and feet.
When folding, avoid quick, forceful motions and fold only on stable, flat surfaces to prevent pinching or tipping. Fold on clean, flat surfaces free of debris. Check that the folding latch is fully disengaged before folding to avoid sudden snaps. Regularly check that safety features are functioning correctly to ensure safe folding.
Secure your folded scooter using built-in locks, and position it against solid objects to enhance stability. Always double-check locking mechanisms post-fold. Avoid hot motor or battery areas when handling the scooter. Use wrist guards if you’re a novice rider to add extra protection.
While riding, keep both hands on the handlebars, avoid engaging the throttle prematurely, and familiarize yourself with brake and cruise control functions to maintain control. Wear full protective gear suited to your scooter’s speed to ensure maximum safety.

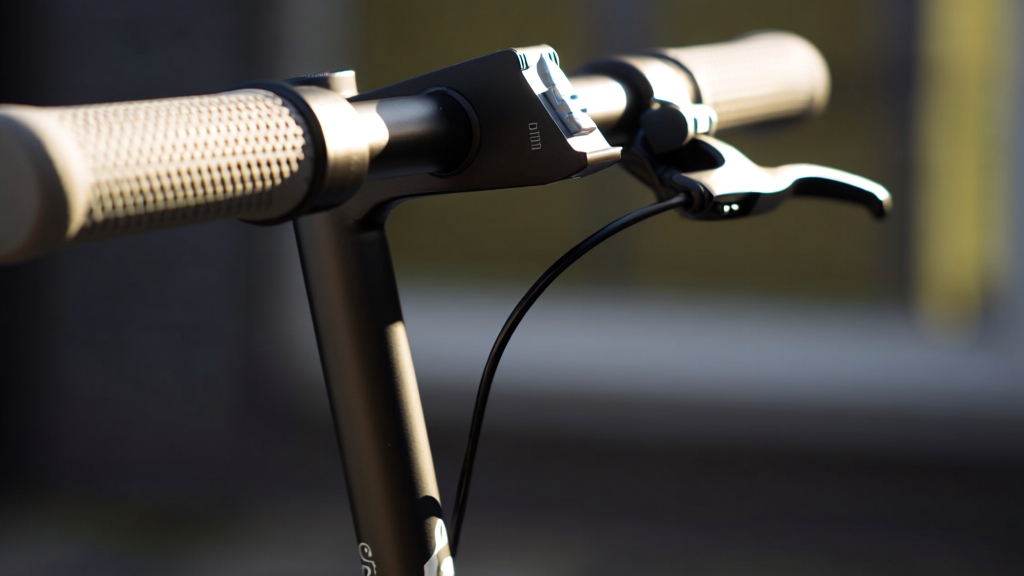

Model-Specific Folding Instructions and Variations
Though folding mechanisms vary across Gotrax models, each design prioritizes secure locking and compactness for portability.
Gotrax folding designs ensure secure locks and compactness for effortless portability across all models.
For G3, G4, Eclipse, GMAX, GMAX Ultra, and G Pro models, you pull up a silver tab near the front wheel, lower the handlebars until the tiller hook clicks onto the fender latch, and press the rear of the latch to unfold. Always ensure that all clamps and locks are secure after folding.
The G2Plus uses a latch and lever system at the tiller, locking firmly when folded and releasing with a click when unfolded. Gotrax electric bikes (EBE1, EBE4, F1-F5) require clamp releases and component positioning before folding the frame and handlebars.
The XR Ultra folds by pulling a rear knob and latch, securing the scooter on its back wheel. Each method guarantees reliable locking and easy transport.

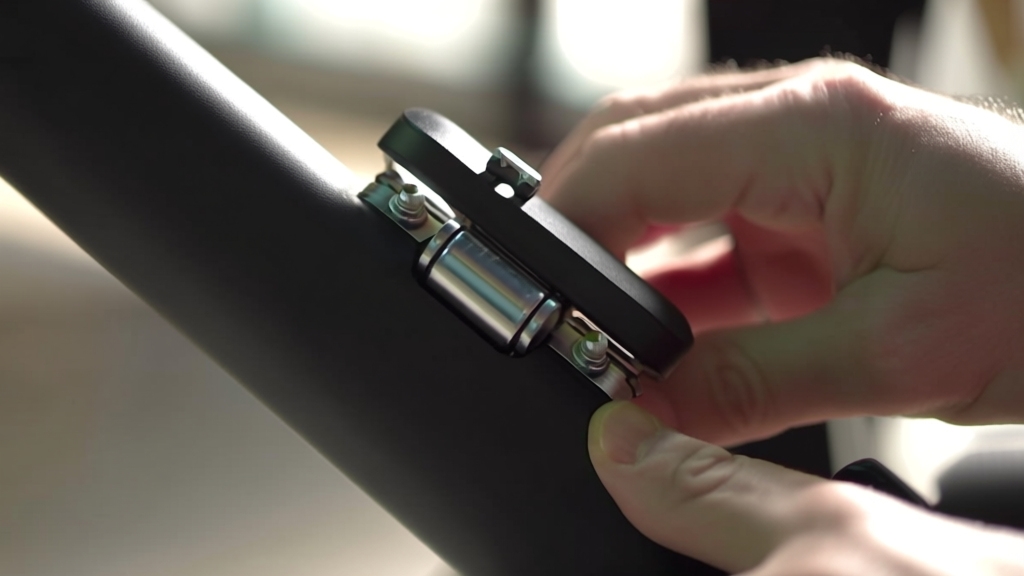

Maintenance and Care for Folding Components
Maintaining the folding components of your Gotrax scooter guarantees reliable performance and extends the lifespan of its mechanisms. Regularly wipe the joints with a soft damp cloth to remove dirt, avoiding harsh chemicals that can damage parts. It is important to inspect for rust regularly to prevent corrosion and maintain smooth operation.
Apply lubricant sparingly on metal joints to prevent rust and ensure smooth folding. Use a silicone-based lubricant for best results on moving parts. Frequently inspect screws and bolts, tightening them with the correct tools without over-tightening.
Handle folding latches gently, making sure to fully engage safety pins for secure operation. Store the scooter indoors away from moisture and extreme temperatures to protect folding parts. Remove the battery and store it separately in a cool, dry place if the scooter will be unused for a long time.
Troubleshooting Common Folding Issues
If your Gotrax scooter’s folding mechanism feels stuck, first check for dirt or corrosion blocking the latch movement. The scooter’s internal wiring and connectors should also be inspected to ensure no loose connections interfere with the folding sensor or safety mechanism.
When the latch doesn’t secure properly, inspect for misalignment or worn springs that could reduce locking tension. Addressing these issues promptly guarantees safe, stable folding and transport every time.
It is also helpful to verify that the internal wiring connectors are intact to prevent electrical faults during folding. Additionally, understanding the importance of proper installation can help maintain the folding mechanism’s reliability and longevity.
Folding Mechanism Stuck
When your Gotrax scooter’s folding mechanism gets stuck, the first step is to inspect for physical obstructions that might block smooth operation. Check if the handlebars are misaligned with the folding joints, as this can prevent full closure. Examine the alignment wheels near the base and ensure no debris is lodged in the quick release latch or hinge.
Look carefully behind the front wheel at the folding joint for any dirt or blockage. Ensure the joint release latch is turned to unlock the folding mechanism to enable proper folding. Finally, test moving parts for stiffness, which may indicate an obstruction or need for cleaning.
- Misaligned handlebars blocking folding joints
- Incorrect positioning of alignment wheels
- Dirt or debris in quick release latch
- Obstruction behind front wheel folding joint
- Stiffness or resistance in moving parts requiring lubrication or cleaning
Latch Not Securing
After ensuring that no physical obstructions or misalignments are causing the folding mechanism to stick, the next common issue to address is the latch not securing properly.
First, thoroughly clean the latch, hinges, and locking area to remove dirt or debris that may block engagement. Check for misaligned folding parts and adjust them carefully. The lock mechanism is activated by a button when the security cord is in place, demonstrating the importance of smooth mechanical operation.
Proper maintenance is crucial because scooters rely on automatic CVT systems which require precise alignment for safe folding. Tighten any loose bolts or screws securing the latch. Inspect the latch cable for slack; correct tension by fully opening the scooter and adjusting the cable accordingly.
Lubricate all moving parts with a suitable lubricant to maintain smooth function. If corrosion or damage is present, clean and replace affected components using Gotrax-approved parts. Persistent issues may require disassembling the mechanism to reset cable tension or internal bolts, but proceed cautiously to avoid damaging internal electronics.
Frequently Asked Questions
Can I Fold My Gotrax Scooter While It Is Still Powered On?
You shouldn’t fold your Gotrax scooter while it’s powered on. Doing so risks accidental throttle activation, causing unintended movement or damage. The folding latch and mechanisms work best when the scooter’s off to avoid electronic interference or mechanical strain.
For safety and to protect your scooter’s components, always power it down before folding. This approach aligns with common electric scooter protocols and helps prevent malfunctions or voiding your warranty.
Are Replacement Folding Mechanisms Available for Purchase Separately?
Yes, replacement folding mechanisms for Gotrax scooters are available separately, typically priced between $30 and $40. These metal alloy assemblies include parts like the wedge, release lever, and handlebar clamp, measuring about 21-3/4 inches in length.
You can purchase them on Gotrax’s official site or through retailers like Monster Scooter Parts. Just be sure to verify model compatibility, as there’s a strict no-returns policy on these parts.
How Much Weight Can a Folded Gotrax Scooter Safely Support?
A folded Gotrax scooter can safely support only its own weight—typically around 20 to 27 pounds—and the load of carrying it by hand. It’s not designed to hold your full rider weight or any heavy external loads when folded.
Avoid leaning or resting heavily on the folded scooter, as this can damage the folding mechanism. Always carry it by the designated handle points to maintain safety and prevent structural damage.
Is It Safe to Fold the Scooter on Uneven or Sloped Surfaces?
You shouldn’t fold your Gotrax scooter on uneven or sloped surfaces—doing so increases the risk of improper latch engagement by up to 40%, leading to instability. The folding mechanism relies on firm, level ground to align safety pins and latches correctly.
Uneven pressure can cause misalignment, damage, or accidental unfolding. Always place your scooter on a stable, flat surface to guarantee secure locking and prevent mechanical wear or safety hazards.
Can Folding the Scooter Affect Its Battery Life or Electrical Components?
No, folding your Gotrax scooter won’t affect its battery life or electrical components. The battery is well-protected inside the deck, and the folding mechanism is designed to avoid stressing electrical parts.
Just make sure you follow the manufacturer’s folding instructions and avoid excessive force. Regularly inspect the folding mechanism and store the scooter in a dry, cool place to maintain both battery health and electronic integrity.
Keep It Smooth: Maintenance Tips for Folding Parts
Folding your Gotrax scooter is like mastering a reliable zipper—once you know the precise steps, it clicks effortlessly every time. Just as a zipper secures your jacket against the cold, properly folding and securing your scooter guarantees safety and portability.
Remember, consistent maintenance of folding parts prevents jams, just like lubricating a zipper keeps it smooth. With these techniques, you’ll confidently fold and unfold your scooter, ready for every ride without hassle or risk.
